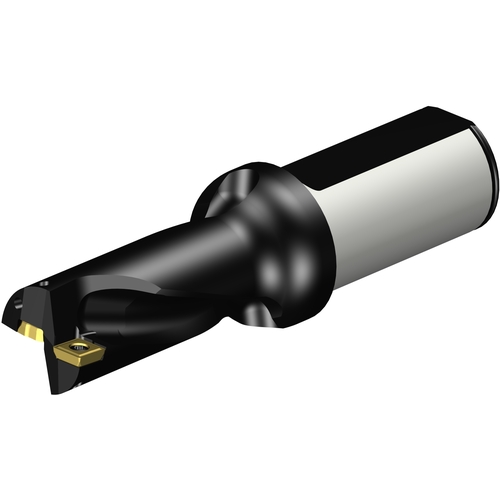

A880-D1062LX31-02 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.062″ Dia. × 2.12″ LU × 1-1/4″ Shank Dia. × 5.464″ OAL ; Steel
| Cutting Diameter (DC) | 1.062″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.12″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 2.28″ | Body Material | Steel |
| Shank Length (LS) | 2.362″ | Decimal Equivalent | 1.062″ |
| Functional Length (LF) | 3.081″ | Model Number | A880-D1062LX31-02 |
| Overall Length (OAL) | 5.464″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.462
