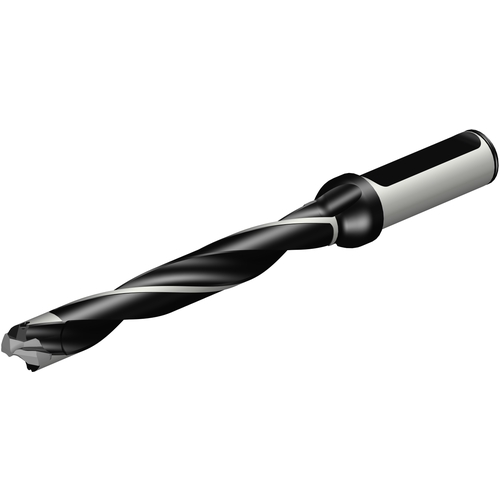

870-1350-13L16-8 CORODRILL 870
Indexable Insert Drill; 13.9 mm Dia. × 114.1 mm LU × 16 mm Shank Dia. × 178 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 13.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 114.1 mm | Cutting Diameter Minimum (DCN) | 13.5 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 13.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 117 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 127.86 mm | Body Material | Steel |
| Overall Length (OAL) | 178 mm | Decimal Equivalent | 0.5472″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1350-13L16-8 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.441
