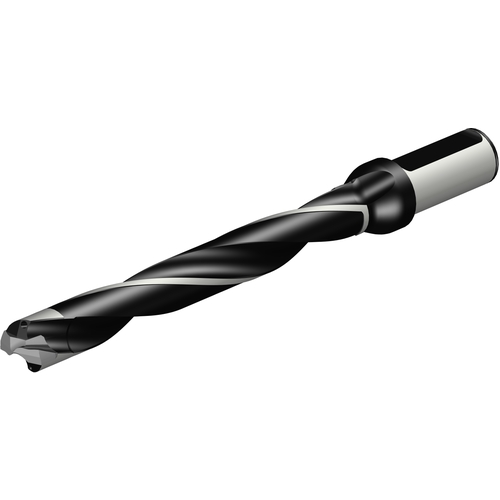

870-2300-23LX1-8 CORODRILL 870
Indexable Insert Drill; 0.941″ Dia. × 7.7″ LU × 1″ Shank Dia. × 10.906″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.941″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 7.7″ | Cutting Diameter Minimum (DCN) | 0.906″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 0.944″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 8xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 7.83″ | Body Material | Steel |
| Functional Length (LF) | 8.559″ | Decimal Equivalent | 0.941″ |
| Overall Length (OAL) | 10.906″ | Model Number | 870-2300-23LX1-8 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Length
11.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.595
