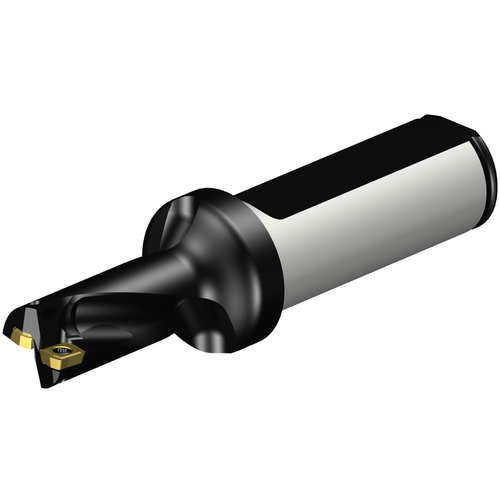

A880-D0531LX19-02 CORODRILL 880 U-DRILL
Indexable Insert Drill; 0.531″ Dia. × 1.06″ LU × 3/4″ Shank Dia. × 3.636″ OAL ; Steel
| Cutting Diameter (DC) | 0.531″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.06″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 1.17″ | Body Material | Steel |
| Shank Length (LS) | 1.768″ | Decimal Equivalent | 0.531″ |
| Functional Length (LF) | 1.653″ | Model Number | A880-D0531LX19-02 |
| Overall Length (OAL) | 3.636″ |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.425
