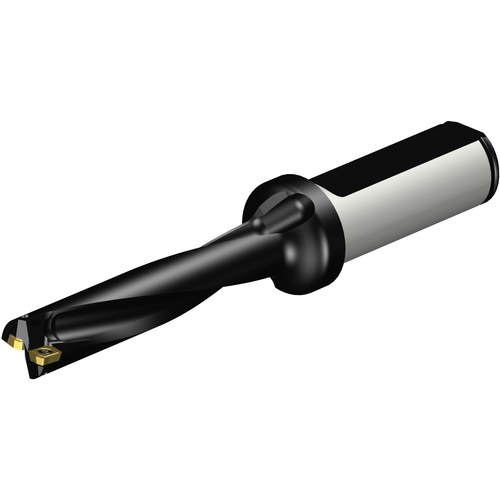

A880-D0531LX19-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 0.531″ Dia. × 2.66″ LU × 3/4″ Shank Dia. × 5.224″ OAL ; Steel
| Cutting Diameter (DC) | 0.531″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.66″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 2.76″ | Body Material | Steel |
| Functional Length (LF) | 3.24″ | Decimal Equivalent | 0.531″ |
| Overall Length (OAL) | 5.224″ | Model Number | A880-D0531LX19-05 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.45
