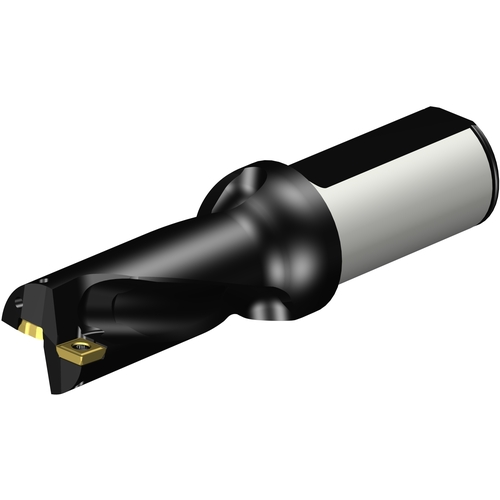

A880D1125LX3102 1-1/8 2X
Indexable Insert Drill; 1-1/8″ Dia. × 2-1/4″ LU × 1-1/4″ Shank Dia. × 5.659″ OAL ; Steel
| Cutting Diameter (DC) | 1-1/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 2.44″ | Body Material | Steel |
| Shank Length (LS) | 2.362″ | Decimal Equivalent | 1.125″ |
| Functional Length (LF) | 3.276″ | Model Number | A880-D1125LX31-02 |
| Overall Length (OAL) | 5.659″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
6.30000
Package Width
2.00000
Package Height
1.90000
Package Weight
1.587
