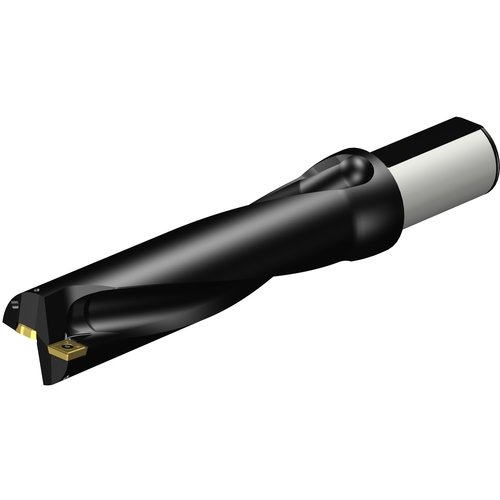

A880-D1687LX38-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.687″ Dia. × 6-3/4″ LU × 1-1/2″ Shank Dia. × 10.866″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.687″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 6-3/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 6.92″ | Body Material | Steel |
| Functional Length (LF) | 8.083″ | Decimal Equivalent | 1.687″ |
| Overall Length (OAL) | 10.866″ | Model Number | A880-D1687LX38-04 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
4.361
