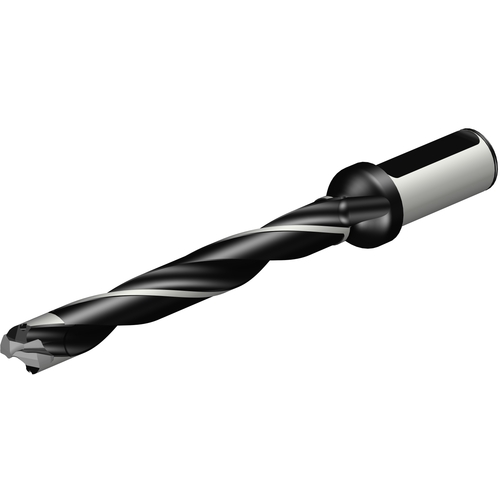

870190019L258 DRILL
Indexable Insert Drill; 19.9 mm Dia. × 163 mm LU × 25 mm Shank Dia. × 242 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 19.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 163 mm | Cutting Diameter Minimum (DCN) | 19 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Maximum (DCX) | 19.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 166 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 182.98 mm | Body Material | Steel |
| Overall Length (OAL) | 242 mm | Decimal Equivalent | 0.7835″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1900-19L25-8 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.153
