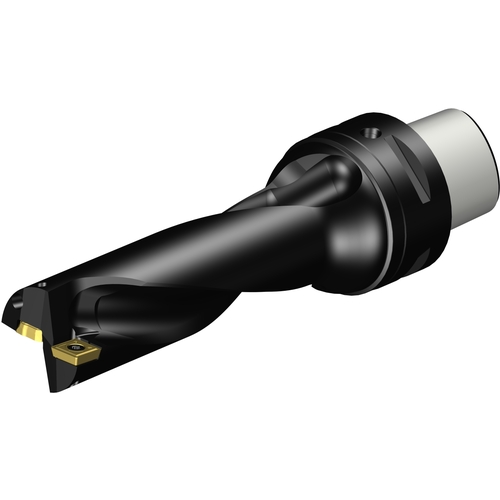

880-D3300C5-03 CORODRILL 880 CAPTO
Indexable Insert Drill; 33 mm Dia. × 99 mm LU x #5 Shank Dia. × 178 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 33 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 99 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #5 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 103 mm | Body Material | Steel |
| Functional Length (LF) | 147.39 mm | Decimal Equivalent | 1.2992″ |
| Overall Length (OAL) | 178 mm | Model Number | 880-D3300C5-03 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
2.293
