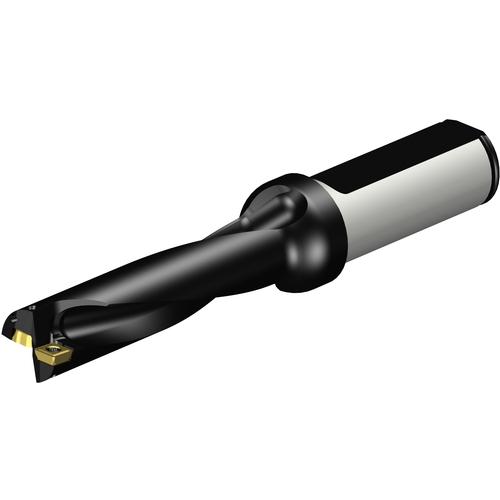

880-D1650L20-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 16.5 mm Dia. × 66 mm LU × 20 mm Shank Dia. × 134 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 66 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 69 mm | Body Material | Steel |
| Functional Length (LF) | 83.67 mm | Decimal Equivalent | 0.6496″ |
| Overall Length (OAL) | 134 mm | Model Number | 880-D1650L20-04 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.545
