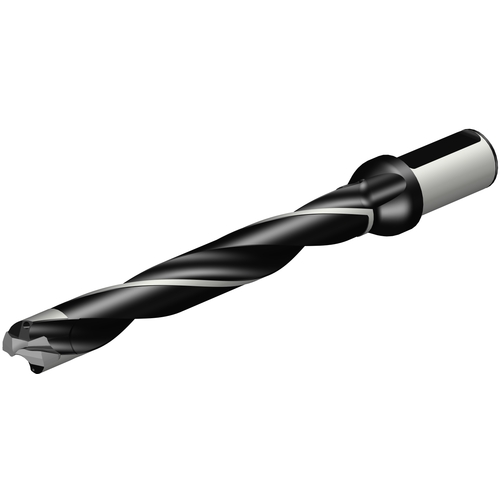

870-2700-27LX125-8 CORODRILL 870
Indexable Insert Drill; 1.083″ Dia. × 8.98″ LU × 1-1/4″ Shank Dia. × 12.52″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.083″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 8.98″ | Cutting Diameter Minimum (DCN) | 1.063″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1.102″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 9.13″ | Helix Angle | 20Degrees |
| Functional Length (LF) | 9.994″ | Body Material | Steel |
| Overall Length (OAL) | 12.52″ | Decimal Equivalent | 1.083″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-2700-27LX125-8 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
2.582
