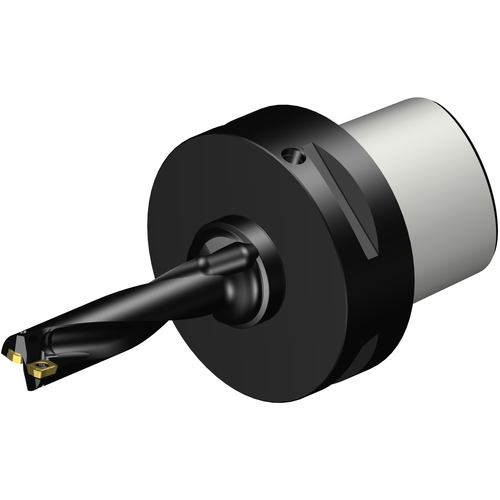

880-D1350C6-04 CORODRILL 880 CAPTO
Indexable Insert Drill; 13.5 mm Dia. × 54 mm LU x #6 Shank Dia. × 130 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 13.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 54 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #6 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 57 mm | Body Material | Steel |
| Functional Length (LF) | 91.62 mm | Decimal Equivalent | 0.5315″ |
| Overall Length (OAL) | 130 mm | Model Number | 880-D1350C6-04 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
2.112
