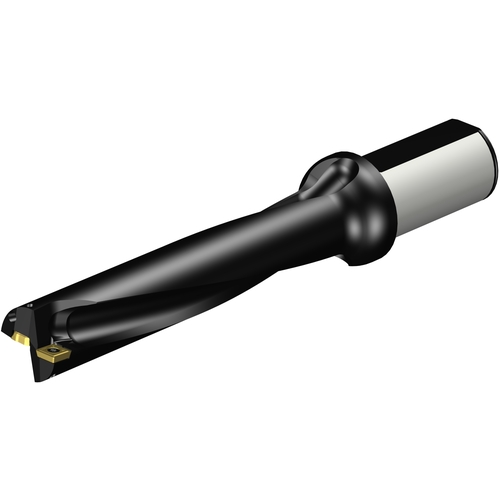

A880-D1312LX38-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.312″ Dia. × 6.56″ LU × 1-1/2″ Shank Dia. × 10.442″ OAL ; Steel
| Cutting Diameter (DC) | 1.312″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 6.56″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 6.72″ | Body Material | Steel |
| Functional Length (LF) | 7.665″ | Decimal Equivalent | 1.312″ |
| Overall Length (OAL) | 10.442″ | Model Number | A880-D1312LX38-05 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
3.23
