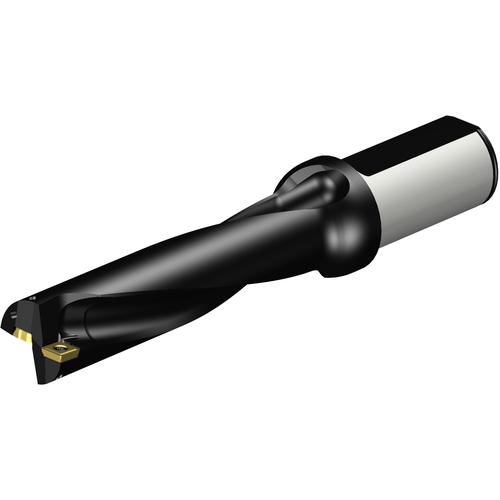

A880-D1125LX31-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1-1/8″ Dia. × 4-1/2″ LU × 1-1/4″ Shank Dia. × 7.864″ OAL ; Steel
| Cutting Diameter (DC) | 1-1/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 4.64″ | Body Material | Steel |
| Shank Length (LS) | 2.362″ | Decimal Equivalent | 1.125″ |
| Functional Length (LF) | 5.482″ | Model Number | A880-D1125LX31-04 |
| Overall Length (OAL) | 7.864″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
3.00000
Package Width
3.00000
Package Height
3.00000
Package Weight
2.008
