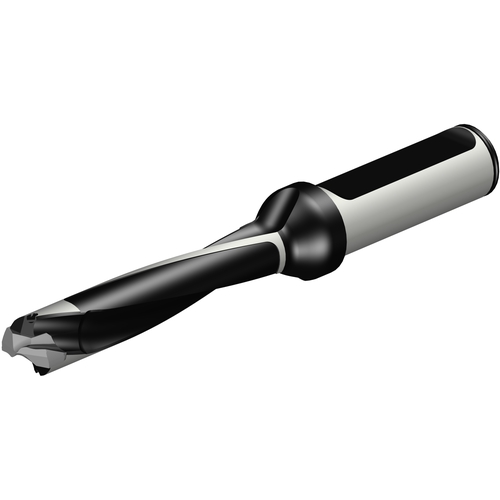

870-1300-12LX063-5 CORODRILL 870
Indexable Insert Drill; 0.528″ Dia. × 2.74″ LU × 5/8″ Shank Dia. × 5.236″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.528″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2.74″ | Cutting Diameter Minimum (DCN) | 0.512″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 0.531″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 5xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 2.83″ | Body Material | Steel |
| Functional Length (LF) | 3.265″ | Decimal Equivalent | 0.528″ |
| Overall Length (OAL) | 5.236″ | Model Number | 870-1300-12LX063-5 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.373
