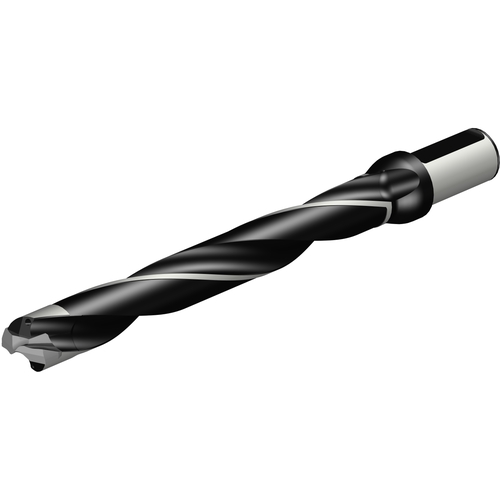

870-3100-31LX125-8 CORODRILL 870
Indexable Insert Drill; 1.299″ Dia. × 10.59″ LU × 1-1/4″ Shank Dia. × 14.134″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.299″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 10.59″ | Cutting Diameter Minimum (DCN) | 1.22″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1.299″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 1-3/4″ | Helix Angle | 20Degrees |
| Functional Length (LF) | 11.572″ | Body Material | Steel |
| Overall Length (OAL) | 14.134″ | Decimal Equivalent | 1.299″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-3100-31LX125-8 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Length
3.00000
Package Width
3.00000
Package Height
3.00000
Package Weight
3.219
