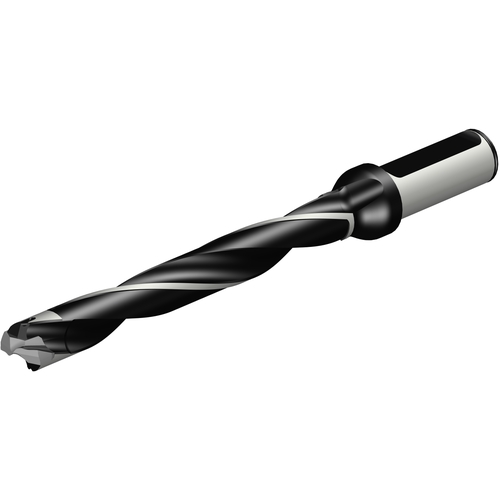

870-1700-17LX075-8 CORODRILL 870
Indexable Insert Drill; 0.705″ Dia. × 5.77″ LU × 3/4″ Shank Dia. × 8.504″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.705″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5.77″ | Cutting Diameter Minimum (DCN) | 0.669″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 0.708″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 8xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 5.87″ | Body Material | Steel |
| Functional Length (LF) | 6.428″ | Decimal Equivalent | 0.705″ |
| Overall Length (OAL) | 8.504″ | Model Number | 870-1700-17LX075-8 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
8.50000
Package Width
1.50000
Package Height
1.50000
Package Weight
0.73
