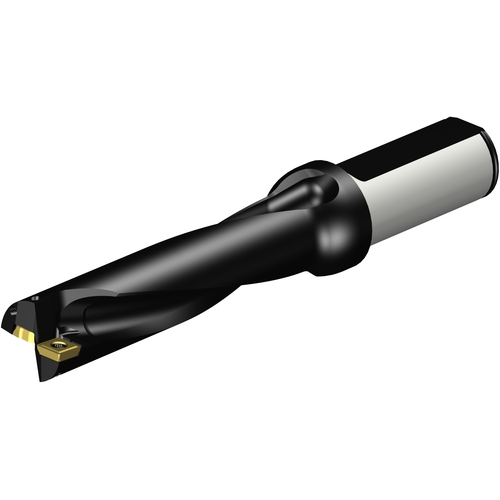

880D2400L2504 CORODRILL
Indexable Insert Drill; 24 mm Dia. × 96 mm LU × 25 mm Shank Dia. × 175 mm OAL ; Steel
| Cutting Diameter (DC) | 24 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 96 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
| Functional Length (LF) | 118.53 mm | Decimal Equivalent | 0.9449″ |
| Overall Length (OAL) | 175 mm | Model Number | 880-D2400L25-04 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.093
