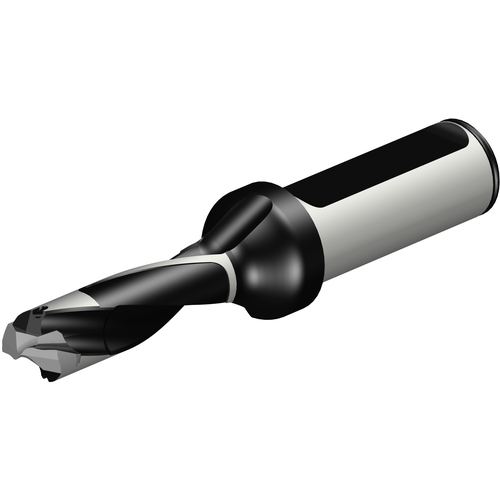

870140014LX0753 DRILL
Indexable Insert Drill; 0.587″ Dia. × 1.86″ LU × 3/4″ Shank Dia. × 4.567″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.587″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1.86″ | Cutting Diameter Minimum (DCN) | 0.551″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 0.59″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 3xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 1.97″ | Body Material | Steel |
| Functional Length (LF) | 2.509″ | Decimal Equivalent | 0.587″ |
| Overall Length (OAL) | 4.567″ | Model Number | 870-1400-14LX075-3 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.481
