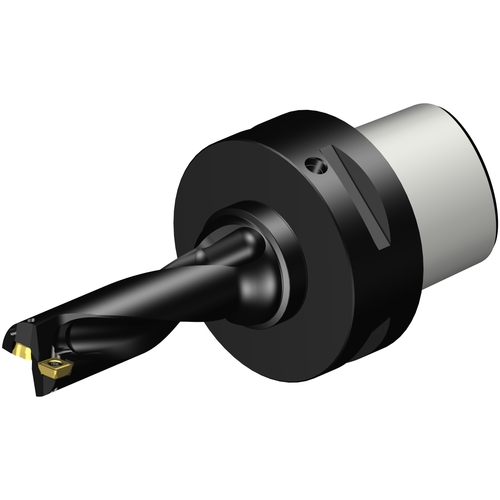

880-D1550C5-03 CORODRILL 880 CAPTO
Indexable Insert Drill; 15.5 mm Dia. × 47 mm LU x #5 Shank Dia. × 114 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 15.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 47 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #5 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 50 mm | Body Material | Steel |
| Functional Length (LF) | 83.67 mm | Decimal Equivalent | 0.6102″ |
| Overall Length (OAL) | 114 mm | Model Number | 880-D1550C5-03 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.289
