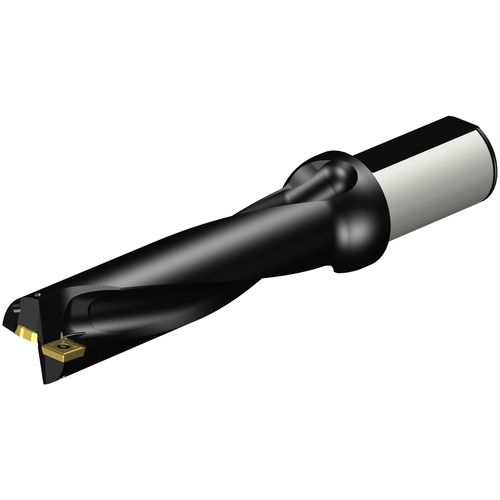

A880-D1437LX38-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.437″ Dia. × 5-3/4″ LU × 1-1/2″ Shank Dia. × 9.72″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.437″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 5-3/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 5.92″ | Body Material | Steel |
| Functional Length (LF) | 6.939″ | Decimal Equivalent | 1.437″ |
| Overall Length (OAL) | 9.72″ | Model Number | A880-D1437LX38-04 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
3.285
