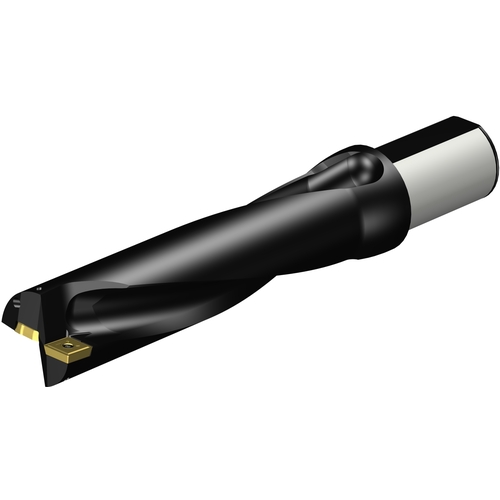

880-D5400L50-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 54 mm Dia. × 216 mm LU × 50 mm Shank Dia. × 338 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 54 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 216 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 221 mm | Body Material | Steel |
| Functional Length (LF) | 257.16 mm | Decimal Equivalent | 2.126″ |
| Overall Length (OAL) | 338 mm | Model Number | 880-D5400L50-04 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
8.885
