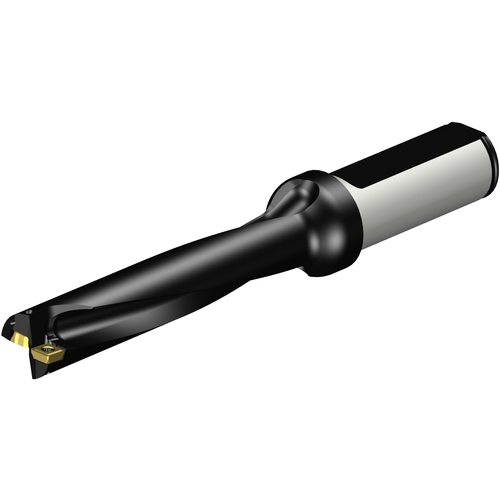

880-D1650L20-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 16.5 mm Dia. × 83 mm LU × 20 mm Shank Dia. × 151 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 83 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 86 mm | Body Material | Steel |
| Functional Length (LF) | 100.7 mm | Decimal Equivalent | 0.6496″ |
| Overall Length (OAL) | 151 mm | Model Number | 880-D1650L20-05 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.560
