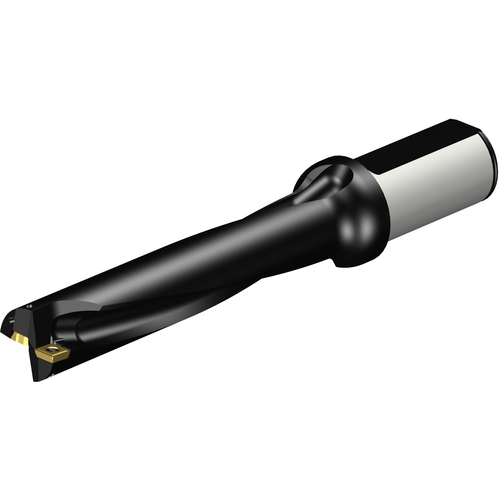

A880-D1062LX31-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.062″ Dia. × 5.31″ LU × 1-1/4″ Shank Dia. × 8.618″ OAL ; Steel
| Cutting Diameter (DC) | 1.062″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 5.31″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 5.44″ | Body Material | Steel |
| Functional Length (LF) | 6.238″ | Decimal Equivalent | 1.062″ |
| Overall Length (OAL) | 8.618″ | Model Number | A880-D1062LX31-05 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.922
