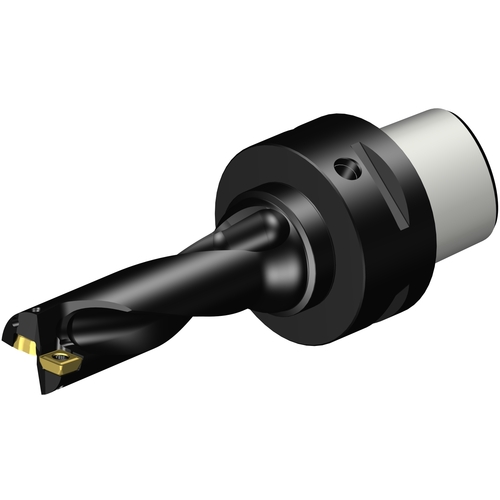

880-D1650C4-03 CORODRILL 880 CAPTO
Indexable Insert Drill; 16.5 mm Dia. × 50 mm LU x #4 Shank Dia. × 112 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #4 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 53 mm | Body Material | Steel |
| Functional Length (LF) | 87.64 mm | Decimal Equivalent | 0.6496″ |
| Overall Length (OAL) | 112 mm | Model Number | 880-D1650C4-03 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.816
