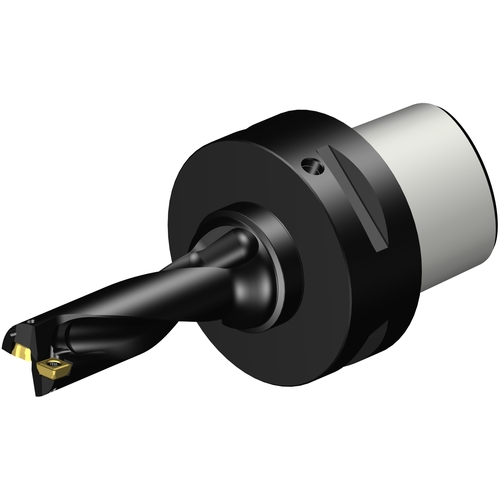

880-D1500C5-03 CORODRILL 880 CAPTO
Indexable Insert Drill; 15 mm Dia. × 45 mm LU x #5 Shank Dia. × 112 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 15 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 45 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #5 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 48 mm | Body Material | Steel |
| Functional Length (LF) | 81.67 mm | Decimal Equivalent | 0.5906″ |
| Overall Length (OAL) | 112 mm | Model Number | 880-D1500C5-03 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
1.278
