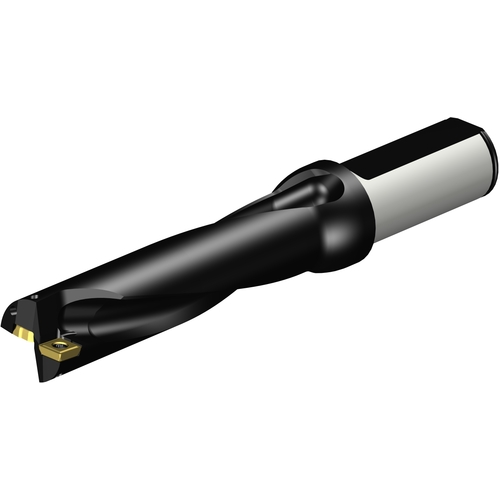

A880-D1000LX25-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1″ Dia. × 4″ LU × 1″ Shank Dia. × 7.12″ OAL ; Steel
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 4.13″ | Body Material | Steel |
| Shank Length (LS) | 2.205″ | Decimal Equivalent | 1″ |
| Functional Length (LF) | 4.896″ | Model Number | A880-D1000LX25-04 |
| Overall Length (OAL) | 7.12″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
7.50000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.199
