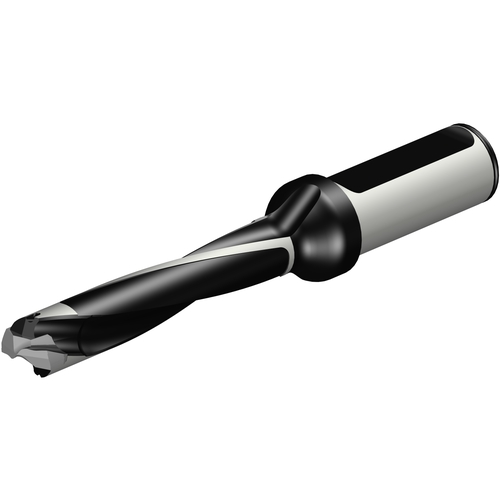

870150015L205 DRILL
Indexable Insert Drill; 15.9 mm Dia. × 82.4 mm LU × 20 mm Shank Dia. × 151 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 15.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 82.4 mm | Cutting Diameter Minimum (DCN) | 15 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 15.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 85 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 98.56 mm | Body Material | Steel |
| Overall Length (OAL) | 151 mm | Decimal Equivalent | 0.626″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1500-15L20-5 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.569
