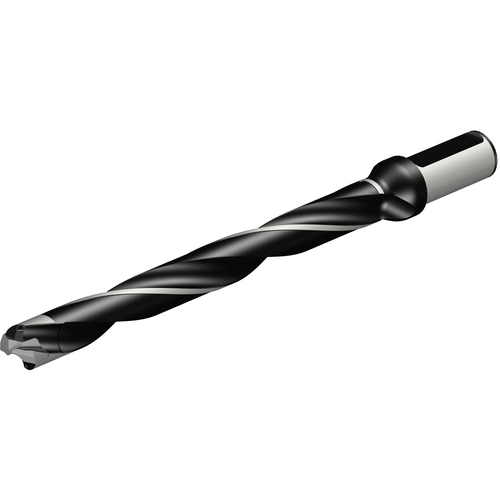

870-2300-23LX1-10 CORODRILL 870
Indexable Insert Drill; 0.941″ Dia. × 9.59″ LU × 1″ Shank Dia. × 12.795″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.941″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 9.59″ | Cutting Diameter Minimum (DCN) | 0.906″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 0.944″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 9.72″ | Helix Angle | 20Degrees |
| Functional Length (LF) | 10.448″ | Body Material | Steel |
| Overall Length (OAL) | 12.795″ | Decimal Equivalent | 0.941″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-2300-23LX1-10 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
1.715
