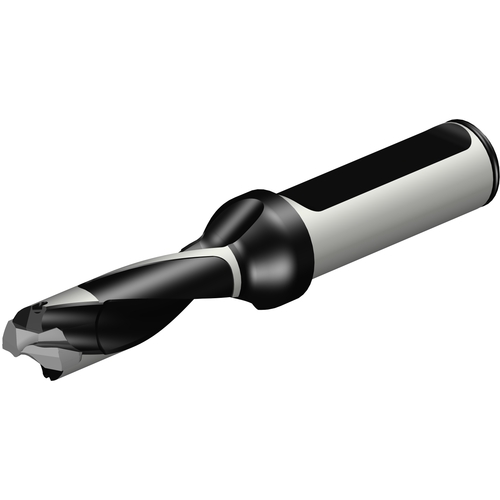

870-1350-13LX063-3 CORODRILL 870
Indexable Insert Drill; 0.547″ Dia. × 1.74″ LU × 5/8″ Shank Dia. × 4.252″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.547″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1.74″ | Cutting Diameter Minimum (DCN) | 0.531″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 0.551″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 3xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 1.85″ | Body Material | Steel |
| Functional Length (LF) | 2.278″ | Decimal Equivalent | 0.547″ |
| Overall Length (OAL) | 4.252″ | Model Number | 870-1350-13LX063-3 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.348
