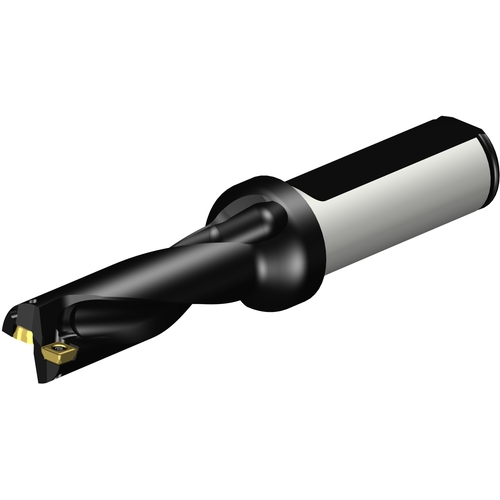

A880-D0625LX19-03 CORODRILL 880 U-DRILL
Indexable Insert Drill; 5/8″ Dia. × 1-7/8″ LU × 3/4″ Shank Dia. × 4.534″ OAL ; Steel
| Cutting Diameter (DC) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1-7/8″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 2.01″ | Body Material | Steel |
| Shank Length (LS) | 1.968″ | Decimal Equivalent | 0.625″ |
| Functional Length (LF) | 2.552″ | Model Number | A880-D0625LX19-03 |
| Overall Length (OAL) | 4.534″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.467
