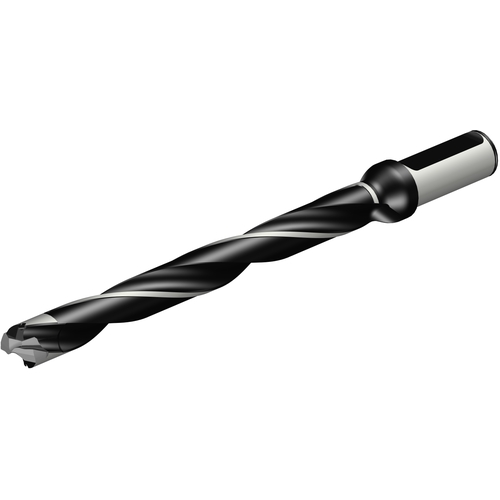

870-1800-18L20-10 CORODRILL 870
Indexable Insert Drill; 18.9 mm Dia. × 192.8 mm LU × 20 mm Shank Dia. × 262 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 18.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 192.8 mm | Cutting Diameter Minimum (DCN) | 18 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 18.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 195 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 209.13 mm | Body Material | Steel |
| Overall Length (OAL) | 262 mm | Decimal Equivalent | 0.7441″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1800-18L20-10 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.926
