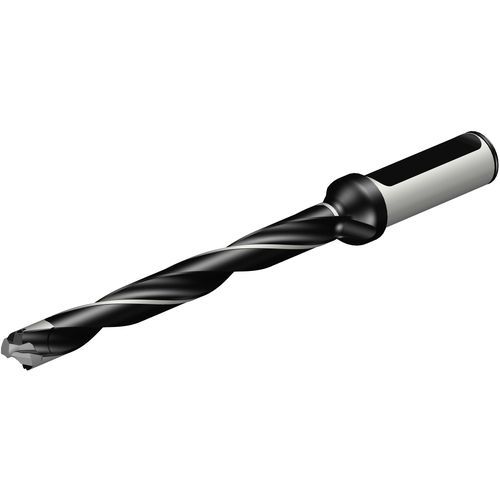

870-1150-9L16-10 CORODRILL 870
Indexable Insert Drill; 11.9 mm Dia. × 121.8 mm LU × 16 mm Shank Dia. × 185 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 11.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 121.8 mm | Cutting Diameter Minimum (DCN) | 11.5 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 11.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 124 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 135.17 mm | Body Material | Steel |
| Overall Length (OAL) | 185 mm | Decimal Equivalent | 0.4685″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1150-9L16-10 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.392
