S32DRZ288410, DRZ Magic Drill 28.00mm Cutting Diameter, 3xD, Coolant-Through Indexable Insert Drill

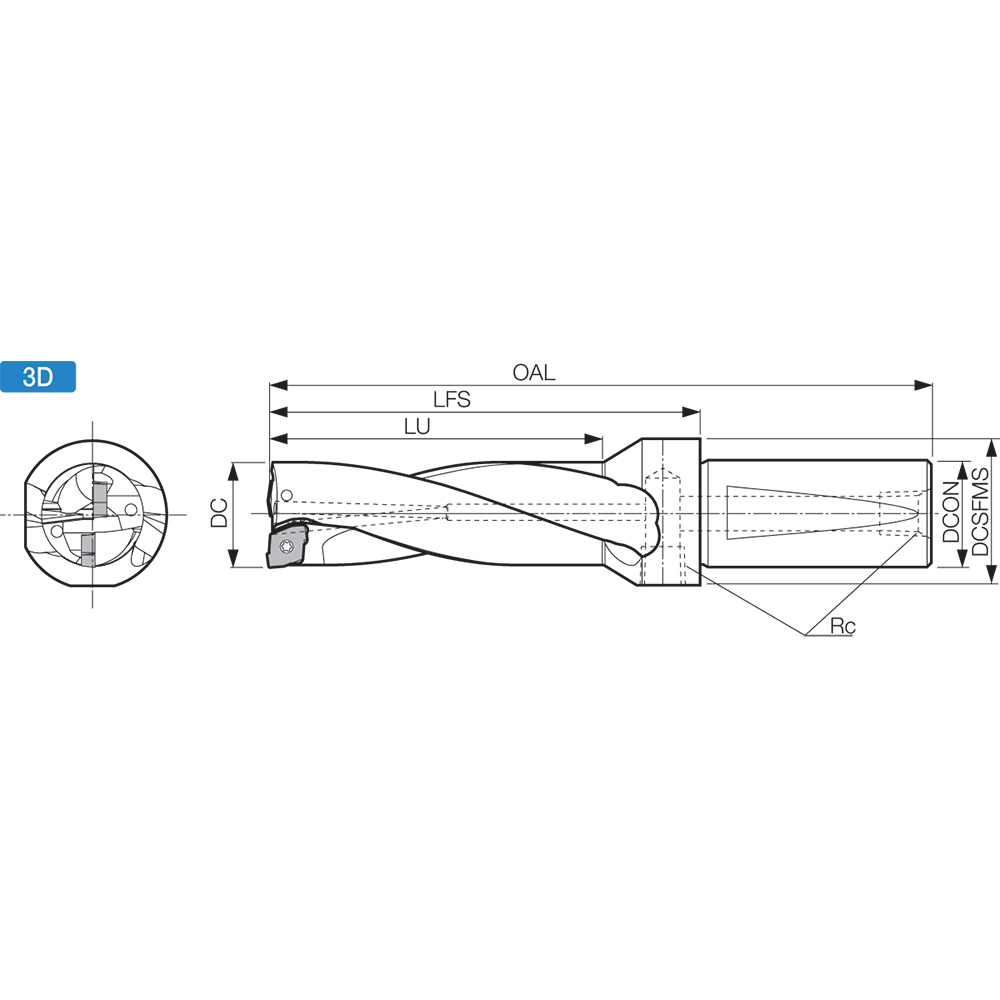

Indexable Insert Drill; 28 mm Dia. × 84 mm LU × 32 mm Shank Dia. × 176 mm OAL ; 3D ; Steel
| Cutting Diameter (DC) | 28 mm | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 84 mm | Cutting Diameter Minimum (DCN) | 28 mm |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 28 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Type | Weldon | Length Group | 3D |
| Overall Length (OAL) | 176 mm | Master Insert Identification (MIID) | ZCMT10T304 | ZCMT10T304SP |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Model Number | 8806657 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.875
