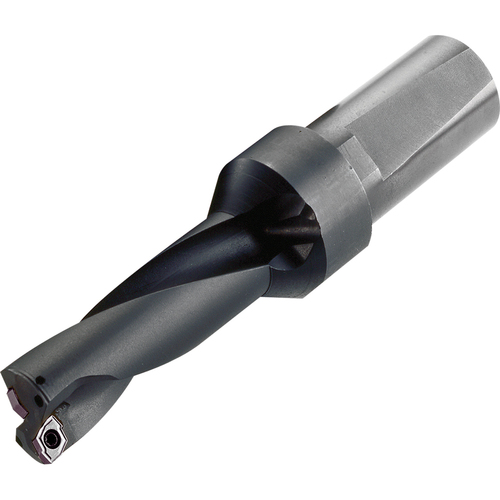

S25DRZ23594008, DRZ Magic Drill 23.50mm Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill

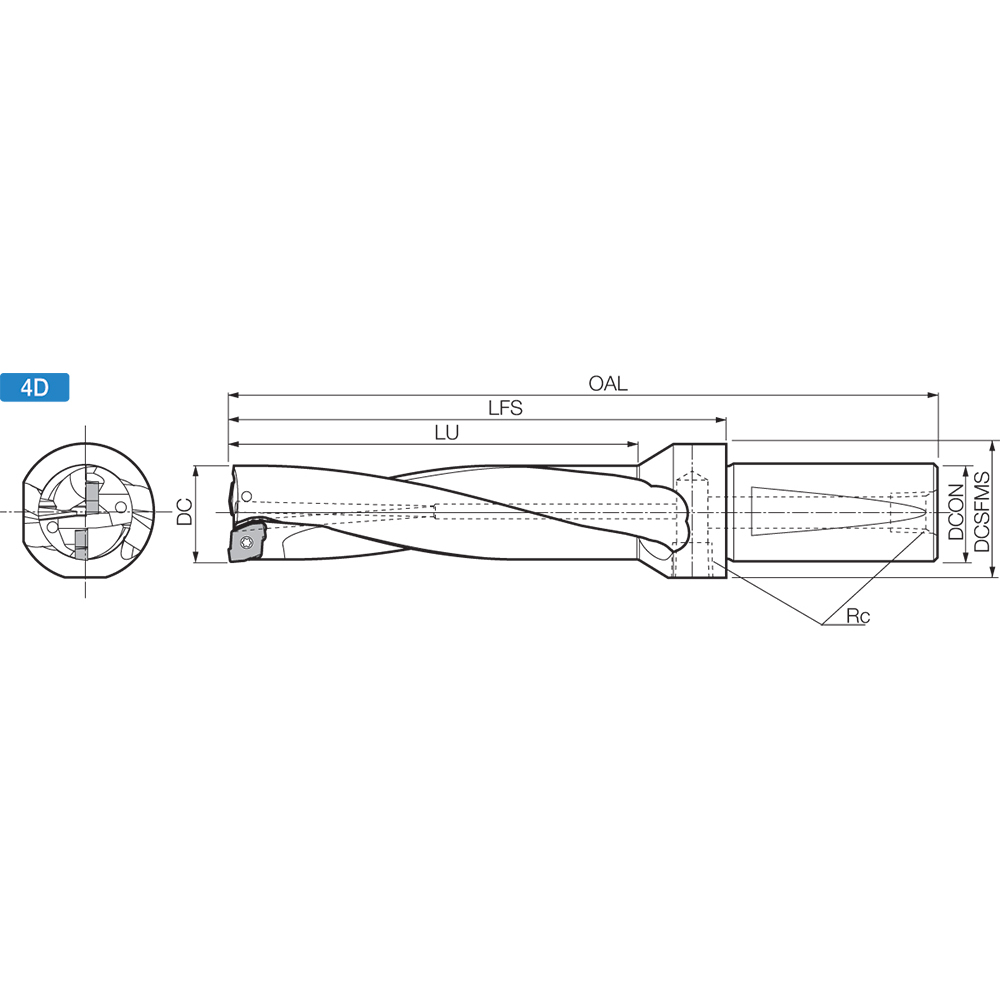

Indexable Insert Drill; 23.5 mm Dia. × 94 mm LU × 25 mm Shank Dia. × 173 mm OAL ; 4D ; Steel
| Cutting Diameter (DC) | 23.5 mm | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 94 mm | Cutting Diameter Minimum (DCN) | 23.5 mm |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 23.5 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Shank Type | Weldon | Length Group | 4D |
| Overall Length (OAL) | 173 mm | Master Insert Identification (MIID) | ZCMT080304 | ZCMT080304SP |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Model Number | 8821053 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.185
