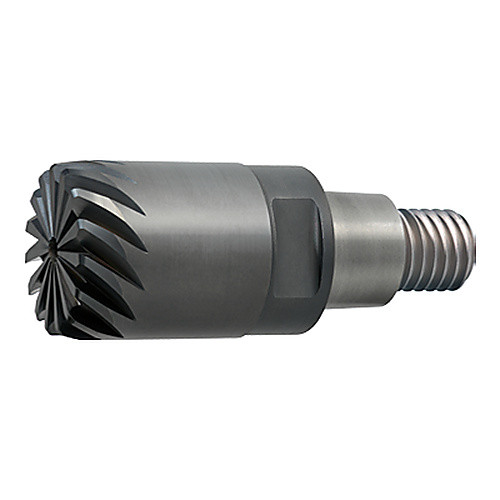

IMX10C8T080R05T080C EP7020 CARB EM
End Mill Head; 8 mm Dia. × 7.12 mm LOC × 9.7 mm Shank Dia. ; 8 FL ; Carbide ; EP7020 ; Series iMX_C8T_C
| Cutting Diameter (DC) | 8 mm | Flute Helix Angle (FHA) | 35 Degrees |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | EP7020 |
| Flute Count (NOF) | 8 | Measurement Type | Metric |
| Corner Radius (RE) | 0.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 7.12 mm | Series/List # | iMX_C8T_C |
| Connection Diameter Machine Side (DCONMS) | 9.7 mm | End Shape | Corner Radius |
| Functional Length (LF) | 16 mm |
Product Features
| Country of Origin | Japan |
