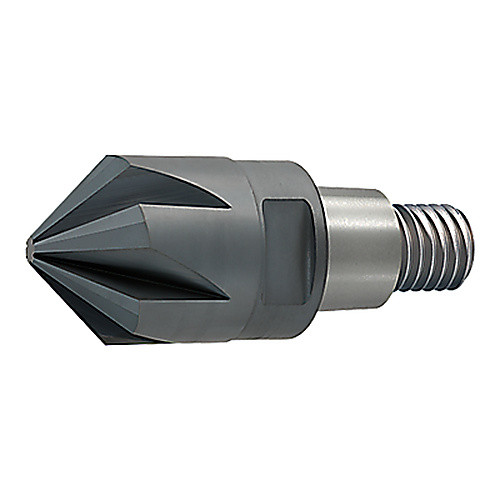

IMX16CH6V160A45 EP7020 CARB EM
End Mill Head; 16 mm Dia. × 6.5 mm LOC × 15.5 mm Shank Dia. ; 6 FL ; Carbide ; EP7020 ; Series iMX_CH6V
| Cutting Diameter (DC) | 16 mm | Grade | EP7020 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6.5 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15.5 mm | Series/List # | iMX_CH6V |
| Functional Length (LF) | 24 mm | End Shape | Chamfer |
Product Features
| Country of Origin | Japan |
