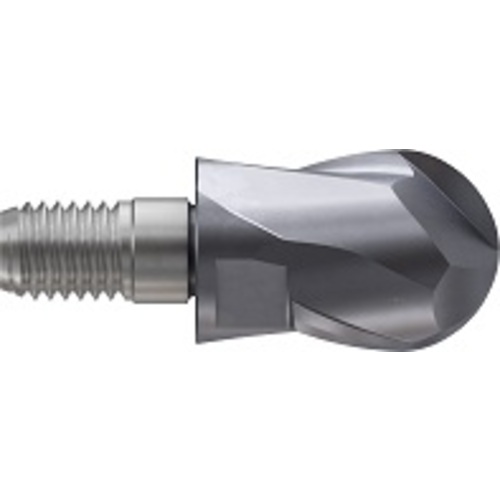

End Mill Head; 1-1/4″ Dia. × 1-1/4″ LOC × 1-1/4″ Shank Dia. ; 2 FL ; M16 ; Carbide ; Series XGMF15
| Cutting Diameter (DC) | 1-1/4″ | Flute Helix Angle (FHA) | 30 Degrees |
| Applicable Material | | Steel | | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 5/8″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 | Series/List # | XGMF15 |
| Cutting Diameter Maximum (DCX) | 1-1/4″ | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Usable Length (LU) | 1.772″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Corner Radius (RE) / Chamfer Width (CHW) | 5/8″ |
| Functional Length (LF) | 1.772″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
1.97
Package Width
1.58
Package Height
1.58
Package Weight
0.999
