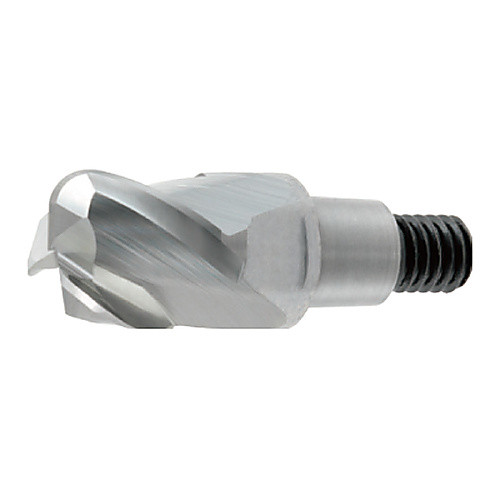

IMX12C3A0500R015P ET2020 CARB EM
End Mill Head; 1/2″ Dia. × 0.4″ LOC × 0.488″ Shank Dia. ; 3 FL ; Carbide ; ET2020 ; Series iMX_C3A_INCH
| Cutting Diameter (DC) | 1/2″ | Flute Helix Angle (FHA) | 37.5 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | ET2020 |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Corner Radius (RE) | 0.015″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.4″ | Series/List # | iMX_C3A_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | End Shape | Corner Radius |
| Functional Length (LF) | 0.789″ |
Product Features
| Country of Origin | Japan |
