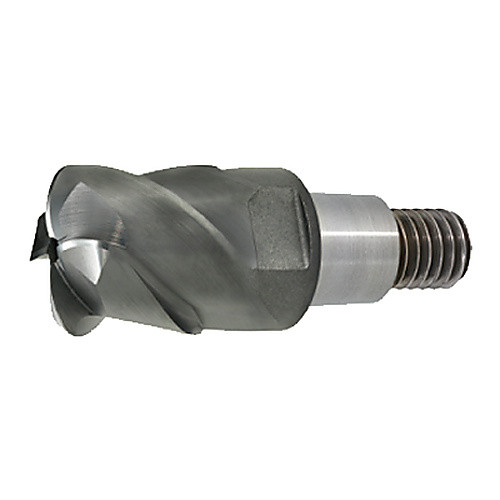

IMX16C4FD16016C EP7020 CARB EM
End Mill Head; 16 mm Dia. × 1 mm LOC × 15.5 mm Shank Dia. ; 4 FL ; Carbide ; EP7020 ; Series iMX_C4FD_C
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | EP7020 |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 2 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1 mm | Series/List # | iMX_C4FD_C |
| Connection Diameter Machine Side (DCONMS) | 15.5 mm | End Shape | Corner Radius |
| Functional Length (LF) | 24 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
Product Features
| Country of Origin | Japan |
