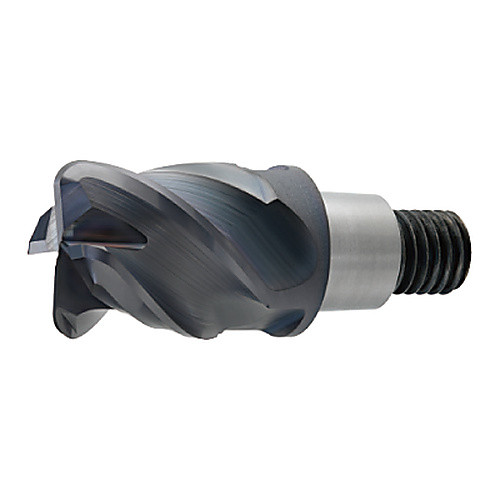

IMX20C4FV200R30021 EP6120 EM
End Mill Head; 20 mm Dia. × 21 mm LOC × 19.5 mm Shank Dia. ; 4 FL ; Carbide ; EP6120 ; Series iMX_C4FV
| Cutting Diameter (DC) | 20 mm | Functional Length (LF) | 30 mm |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | EP6120 |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 3 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 21 mm | Series/List # | iMX_C4FV |
| Connection Diameter Machine Side (DCONMS) | 19.5 mm | End Shape | Corner Radius |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
