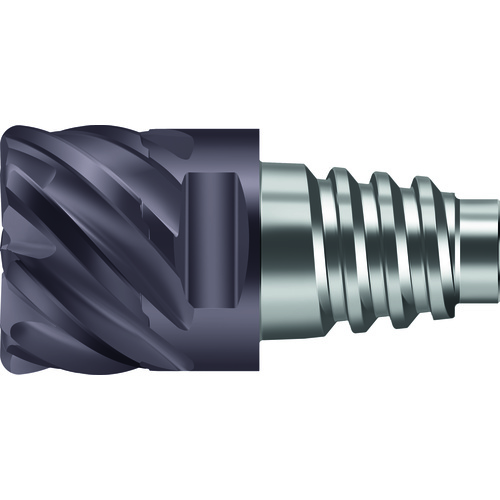

7872881 ADVANCE LINE, CON
End Mill Head; 25 mm Dia. × 13.5 mm LOC × 13.5 mm Max Depth × 24.2 mm Shank Dia. × 49.6 mm OAL ; 8 FL ; E25 ; TiAlN ; WJ30TF ; Series MC128
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 25 mm | Grade | WJ30TF |
| Flute Count (NOF) | 8 | Coating | TiAlN |
| Connection Thread Nominal Size Machine Side (THSZMS) | E25 | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 13.5 mm | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 13.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 24.2 mm | Series/List # | MC128 |
| Flute Helix Angle (FHA) | 50 Degrees | Usable Length (LU) | 26 mm |
| Overall Length (OAL) | 49.6 mm | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.999
