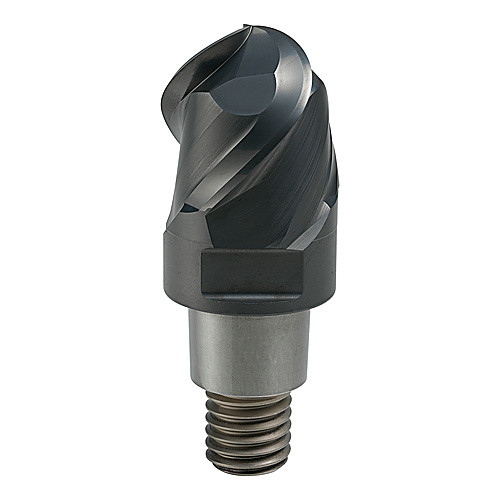

IMX16B3FV16012
End Mill Head; 16 mm Dia. × 12.8 mm LOC × 15.5 mm Shank Dia. ; 3 FL ; Carbide ; EP8120 ; Series iMX_B3FV
| Cutting Diameter (DC) | 16 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | | Steel | Hard Materials | | Grade | EP8120 |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | 8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 12.8 mm | Series/List # | iMX_B3FV |
| Connection Diameter Machine Side (DCONMS) | 15.5 mm | End Shape | Ball Nose |
| Functional Length (LF) | 24 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.999
