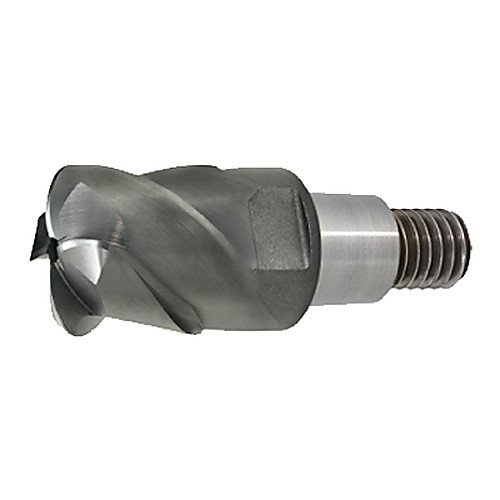

IMX12C4FD0500MC
End Mill Head; 1/2″ Dia. × 0.033″ LOC × 0.488″ Shank Dia. ; 4 FL ; Carbide ; EP7020 ; Series iMX_C4FD_C_INCH
| Cutting Diameter (DC) | 1/2″ | Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | EP7020 |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Corner Radius (RE) | 0.06″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.033″ | Series/List # | iMX_C4FD_C_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | End Shape | Corner Radius |
| Functional Length (LF) | 0.789″ | Ramping Angle Maximum (RMPX) | 3.6 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.999
