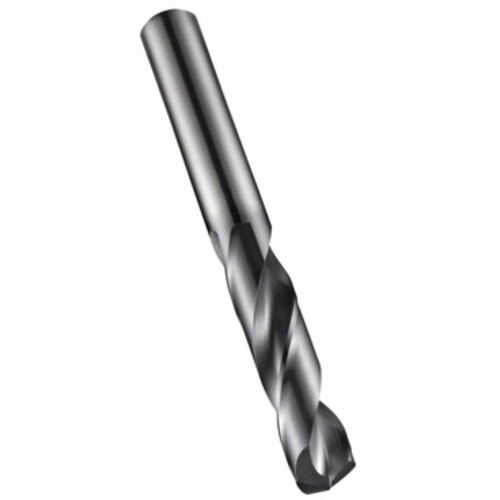

17/32″ Dia. × 14 mm Shank × 60 mm Flute Length × 107 mm OAL, 3xD, 140°, TiAlN, 2 Flute, External Coolant, DIN 6535 HA Solid Carbide Drill
SC Drill; 17/32″ Dia. × 14 mm Shank Dia. × 107 mm OAL × 60 mm LCF ; 140 Degrees ; 3xD ; Continously Thinned Web (CTW) Flute ; TiAlN ; Series R458
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 17/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 17/32″ | Tool Type | Solid Drills |
| Decimal Equivalent | 0.5313″ | Flute Type | Continously Thinned Web (CTW) |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAlN | Style | Force X |
| Applicable Material | | Carbide | | Series/List # | R458 |
| Application | General Drilling | Usable Length (LU) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Length Chip Flute (LCF) | 60 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 107 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 45 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Solid Drills |
Product Features
| Family Description | E-code # R45817/32 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.403
