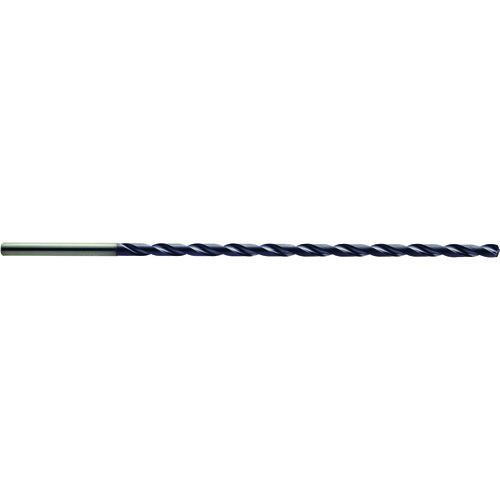

SC Drill; U Dia. x 10 mm Shank Dia. × 277 mm OAL × 219 mm LCF ; 140 Degrees ; 20xD ; TiAlN ; Series DH520
SC Drill; U Dia. x 10 mm Shank Dia. × 277 mm OAL × 219 mm LCF ; 140 Degrees ; 20xD ; TiAlN ; Series DH520
| Drill Bit Size / Cutting Diameter (DC) | U | Point Length (PL) | 1.701 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.368″ | Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.368″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.347 mm | Tool Type | Dream Drills MQL |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | U | Measurement Type | Letter |
| Length Group | 20xD | Series/List # | DH520 |
| Coating | TiAlN | Length Chip Flute (LCF) | 219 mm |
| Applicable Material | | Steel | | Overall Length (OAL) | 277 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 140 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
14.25
Package Width
1
Package Height
1
Package Weight
0.999
