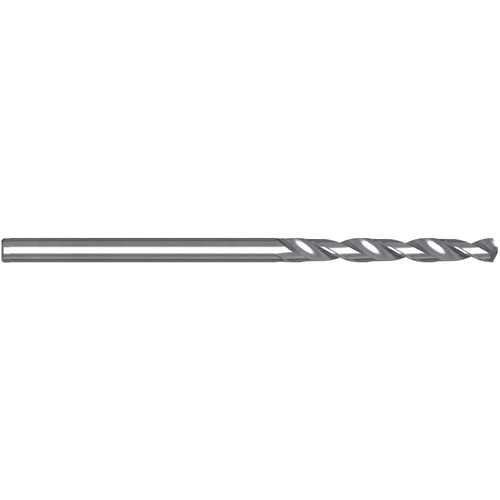

SC Drill; 11/16″ Dia. × 18 mm Shank Dia. × 57 mm OAL × 93 mm LCF ; 125 Degrees ; Series UDR5A1AB

Item # 0885842

Brand: YG-1 Cutting Tools

MFG #: UDR5A1AB0688

Legacy Part #: YG56UDR5A1AB688

Quantity Available

Drill Bit Size / Cutting Diameter (DC)

11/16″

Cutting Edge Material

Carbide

Drill Bit Size / Cutting Diameter (DC) - Inch

11/16″

Tool Type

Drills for CFRP/AL

Decimal Equivalent

0.6875″

Measurement Type

Inch

Drill Bit Size / Cutting Diameter (DC) - Metric

17.46 mm

Series/List #

UDR5A1AB

Connection Diameter Machine Side (DCONMS)

18 mm

Length Chip Flute (LCF)

93 mm

Coolant Supply Property (CSP)

Coolant Thru

Overall Length (OAL)

57 mm

Point Angle (SIG)

125 Degrees

Flute Count (NOF)

Shank Type

Round

Product Features

Remarks

Special geometry for dry or MQL drilling of CFRP/AL stacks
YG-1 Special CVD coating and other coatings available for extended tool life and better abrasion resistance

Country of Origin

S.Korea

Shipping Info

Package Length

4.408

Package Width

1.1

Package Height

1.1

Package Weight

0.999
