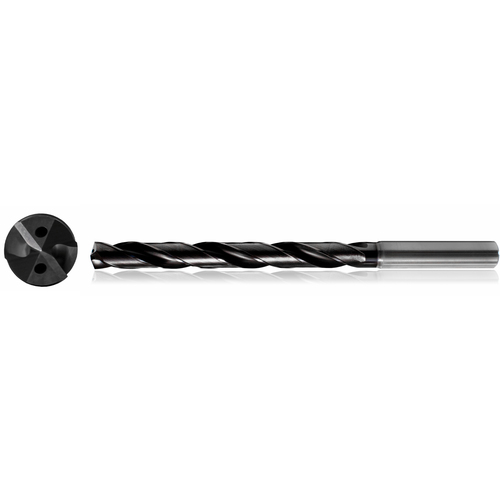

23/64″ Dia. × 10 mm Shank × 95 mm Flute Length × 142 mm OAL, 8xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #5611
| Drill Bit Size / Cutting Diameter (DC) | 23/64″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 23/64″ | Tool Type | High Performance Carbide Drill |
| Decimal Equivalent | 0.3594″ | Flute Type | Helical |
| Length Group | 8xD | Measurement Type | Inch |
| Coating | TiAlCN | Series/List # | 5611 |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium | Usable Length (LU) | 95 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 95 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 142 mm |
| Point Angle (SIG) | 30 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 95 mm | Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
