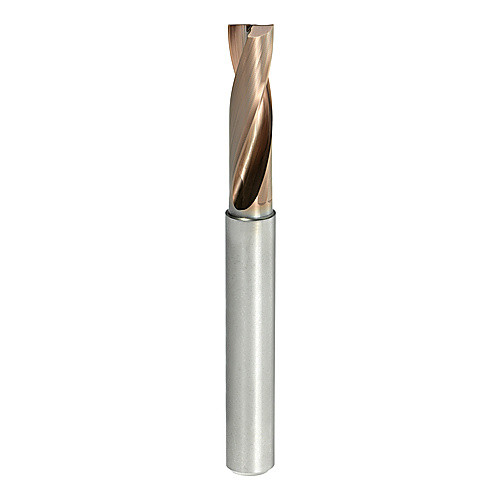

MFE1548X02S160 DP1020 0.6094″ Dia. × 0.63″ Shank × 2.445″ Flute Length × 4.374″ OAL, 180°, 2 Flute, External Coolant, Solid Carbide Drill
SC Drill; 0.6094″ Dia. × 0.63″ Shank Dia. × 4.374″ OAL × 2.445″ LCF ; 180 Degrees ; 2xD ; Series MFE_INCH
| Drill Bit Size / Cutting Diameter (DC) | 0.6094″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.6094″ | Grade | DP1020 |
| Length Group | 2xD | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | MFE_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Usable Length (LU) | 1.219″ |
| Head Length (LH) | 2.563″ | Length Chip Flute (LCF) | 2.445″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4.374″ |
| Point Angle (SIG) | 180 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 20 Degrees | Feature | High efficiency drilling in various types of machining. |
Product Features
| Country of Origin | Japan |
