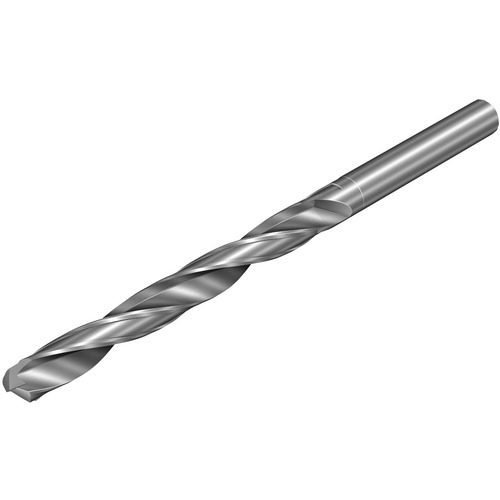

4.83 mm Dia. × 4.83 mm Shank × 50.8 mm Flute Length × 101.6 mm OAL, 135°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill
SC Drill; 4.83 mm Dia. × 4.83 mm Shank Dia. × 101.6 mm OAL × 50.8 mm LCF ; 135 Degrees ; 8xD ; Uncoated
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 4.83 mm | Shank Type | Round |
| Decimal Equivalent | 0.1902″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.83 mm | Cutting Edge Material | Carbide |
| Length Group | 8xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Grade | H10F |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4.83 mm | Usable Length (LU) | 44.4 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 50.8 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 101.6 mm |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.060
